High Efficiency Horizontal Coil Air Cooled Condensing Unit Low Noise KW504A3

Name: High Efficiency Horizontal Coil Air Cooled Condensing Unit Low Noise KW504A3
Brand: Ruifujie
Price: 1 USD

Buy cheap High Efficiency Horizontal Coil Air Cooled Condensing Unit Low Noise KW504A3 product

Brand Name : Ruifujie

Model Number : KW504A3

Certification : CE

Place of Origin : Chian

MOQ : 1

Price : discussed

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500

Delivery Time : 5-15DAYS

Packaging Details : Wooden box

Capacity R22 : 65.4KW

Surface : 122 ㎡

Circuit Vol : 20 Dm³

Tube Length : 125 m

Air Flow : 20000 m³/h

Fan Mot.Power : 1800w

Contact Now

Model KW504A3 Table-Type Condensers From RFJ with Low Noise 2 Axial Fan

various noise levels.
units suitable for hfc working fluids.

Features
• high efficiency coil
• low noise
• reduced coils volume/refrigerant charge condensers.
• energy saving fans
download catalogo applications
• horizontal and vertical air flow condensers.
• different available air-cooled

ModeIs		KW504A3-LN	KW504A4-LN	KW604A3-LN	KW604A4-LN	KW606A3-LN	KW606A4-LN
		52.8	58.4	83.6	92.4	124	139
		57.4	63.4	90.4	100.2	136.6	150.6
		51.4	58.2	79.8	91.6	123.6	136.2
surface ㎡		122	163	169	225	254	338
Circuit VoI.d㎥		20	26	27	36	41	54
Tube Length m		125	166	173	230	259	346
Fan Mot.Φmm×n°		500×4	500×4	600×4	600×4	600×6	600×6
PoIe Number		6P	6P	6P	6P	6P	6P
Air FIow ㎥/h		14600	13800	25600	23200	38400	34800
Fan Mot.Amper A		2.2	2.2	5.6	5.6	8.4	8.4
Fan Mot.Pmper W		920	920	2000	2000	3000	3000
Noise dBA		48	48	49	49	50	50
In Tube inch	inch.	1-1/8	1-1/8	1-3/8	1-3/8	1-5/8	2-1/8
Out Tube inch.		7/8	7/8	1-1/8	1-1/8	1-3/8	1-5/8
Net Weight Kg		150	160	200	220	280	310
Drawing No.		⑭	⑭	⑮	⑮	⑯	⑯

High Efficiency Horizontal Coil Air Cooled Condensing Unit Low Noise KW504A3

Product Tags:

air cooled condenser in refrigeration

air cooled condensing unit

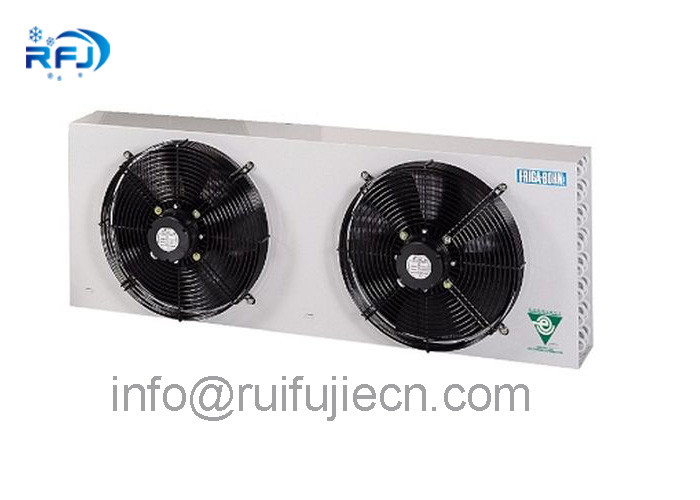

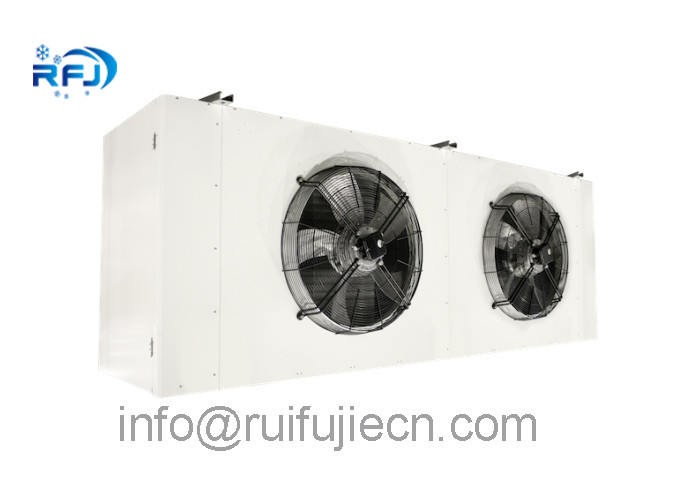

High Efficiency Horizontal Coil Air Cooled Condensing Unit Low Noise KW504A3 Images
